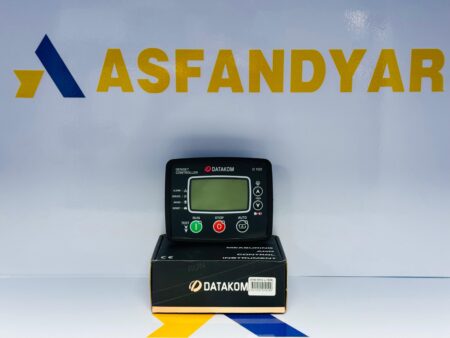

DATAKOM D-700 Synchronizing Controller

AED2,490.00

DATAKOM D-700 Synchronizing Controller (ATS Remote Engine Control Remote Display) is (Original) and made in Turkey. It is a robust and highly advanced genset controller designed for synchronization, load sharing, and comprehensive generator management. It offers a range of features to manage single or multiple generators in parallel operation, as well as integration with the mains power supply.

Quantity
Add to quote
Category: Tags: , , , , , , , , , , ,

Description

DATAKOM D-700 Synchronizing Controller (ATS Remote Engine Control Remote Display) is a robust and highly advanced genset controller designed for synchronization, load sharing, and comprehensive generator management. It offers a range of features to manage single or multiple generators in parallel operation, as well as integration with the mains power supply.

Features:

Synchronization and Load Sharing:

  • Supports synchronization of up to 32 gensets.
  • Allows load sharing for active (kW) and reactive power (kVAr) in parallel operations.
  • Automatic mains synchronization and soft transfer capabilities.

Automatic Functions:

  • Auto Mains Failure (AMF) detection.
  • Automatic Transfer Switch (ATS) control for seamless switching between mains and generator.

Communication Interfaces:

  • Ethernet port (10/100 Mbps) with an embedded web server.
  • RS-485 Modbus RTU and Modbus TCP/IP protocols for SCADA integration.
  • USB Host and Device ports for data transfer and firmware updates.
  • J1939-CANBUS for engine communication.
  • Optional GSM/GPRS module for remote monitoring.
  • SNMP (Simple Network Management Protocol) support for network management.
  • RS-232 port for additional connectivity.
  • Micro SD card slot for extended data logging.

Measurement and Monitoring:

  • Real-time monitoring of voltage, current, frequency, active/reactive power, and power factor.
  • Event logging with up to 400 events, including snapshots for detailed diagnostics.
  • Harmonic analysis for detecting power quality issues.

User-Friendly Interface:

  • Fully configurable via the front panel, web interface, or PC software.
  • 128×64 graphical LCD for intuitive operation and visualization.
  • Supports multiple languages for global use.

Event Logging and Alarms:

  • Alarms and warnings for over/under voltage, over/under frequency, overcurrent, etc.
  • Fault detection and logging with time-stamped records.

Power Supply Range:

  • Works with supply voltages ranging from 8 to 36 VDC.
  • Low power consumption during standby mode.

Technical Specifications:

Electrical Measurements:

  • Voltage range: 15-300V (Ph-N), 25-520V (Ph-Ph).
  • Current input: 0-5A AC.
  • Frequency: 30-100 Hz.

Outputs:

  • Configurable relay outputs for alarms and control.
  • High-current output relays for starter, fuel, and load breakers.

Inputs:

  • Configurable digital inputs for custom applications.
  • Analog inputs for sensors (temperature, oil pressure, etc.).

Environmental:

  • Operating temperature: -40°C to +70°C.
  • IP65 front panel protection (when properly installed).

Certifications:

  • Complies with international standards like CE and UL.

Applications:

  • Diesel and gas generator sets.
  • Hybrid power systems.
  • Grid-connected systems for power export and synchronization.
  • Industrial and commercial power management.
