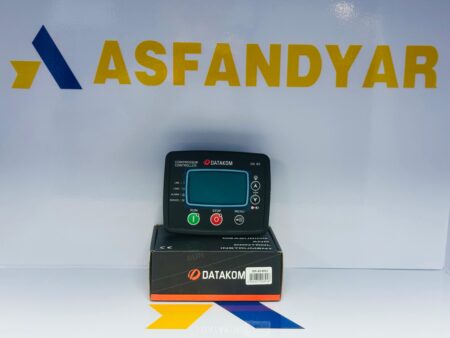

DATAKOM DK-30 Diesel Compressor Controller

Description

DATAKOM DK-30 is a high-performance diesel compressor controller, specifically designed to manage and protect diesel engine-driven air compressors, including both screw and piston types.

Features:

Pressure Management:

• Automatically starts and stops the engine based on output pressure levels.
• Utilizes a PID-controlled analog speed output for maintaining stable pressure.

Load Solenoid and Solenoid Outputs:

• Built-in controls for operating load solenoids.
• Capable of handling solenoid-operated compressor valves.

Early Start Functionality:

• Predicts air consumption trends and starts the compressor before pressure drops below the critical level.

Multi-Unit Support:

• Integrates support for up to 8 compressors in the same system for synchronized operation.

Comprehensive Protection:

• Protects engines from overheating, low oil pressure, overspeed, and other critical faults.

Data Logging and Monitoring:

• Keeps detailed event history for troubleshooting and analysis.
• Equipped with five service counters to help monitor and schedule regular maintenance.

Zero Power Consumption in STOP Mode:

• Consumes no battery power when the compressor is not in operation, ensuring longer battery life.

Modbus RTU Communication:

• Allows seamless integration with remote monitoring systems via serial ports.

Instrumentation and Input/Output:

Inputs:

• Magnetic pickup for speed sensing (0.5–30V AC; 0–10,000 Hz).
• Configurable digital and analog inputs for engine sensors (oil pressure, coolant temperature, fuel level, etc.).
• 4–20mA pressure sensor compatibility for precise pressure readings.

Outputs:

• Semiconductor-based MOSFET outputs for robustness.
• Charge alternator excitation output for battery charging.

Display and Interface:

• Clear LED/LCD screen for operational status, fault conditions, and pressure levels.
• Easy-to-navigate menu structure for parameter adjustments.

Technical Specifications:

• DC Supply Voltage: 9.0 to 33.0 V-DC
• Cranking Dropouts: Survives 0V for 100ms
• Current Consumption:
• Typical: 130mA-DC
• Maximum: 250mA-DC
• DC Outputs: Protected MOSFET semiconductor outputs, rated 1Amp@28V-DC
• Charge Alternator Excitation: Minimum 2W
• Magnetic Pickup Input:
  1. Voltage: 0.5 to 30V-AC
  2. Frequency: 0 to 10,000 Hz
• Digital Inputs: Input voltage 0 to 30 V-DC, connected to BAT+ via internal 47K resistor
• Analog Sender Input Range: 0-5000 ohms
• Pressure Inputs: 4-20mA pressure sensor
• Temperature Inputs: 1000 to 5000 ohms (compatible with KTY/NTC/PTC sensors)
• Serial Port:
  1. Signal Type: Logic levels
  2. Communication: Modbus RTU
  3. Data Speed: 9600 baud
• Operating Temperature: -30°C to +70°C
• Storage Temperature: -40°C to +80°C
• Max. Relative Humidity: 95% non-condensing
• Protection Degree:
  1. Front Panel: IP65 (with gasket)
  2. Back: IP30
• Enclosure: Flame retardant, ROHS compliant, high-temperature ABS/PC (UL94-V0)
• Installation: Panel mounted with rear retaining plastic brackets
• Dimensions: 132x105x54mm (WxHxD)
• Panel Cutout: Minimum 116x86mm
• Weight: 250 grams

Applications:

Industrial Compressors:

• For maintaining air pressure in factories or heavy machinery operations.

Mobile Compressors:

• Ideal for use in portable units where rugged operation and precise control are needed.

Multi-Unit Systems:

• Synchronization of several compressors in larger facilities.

Configuration and Software Support:

Configuration:

• Easily adjustable using front panel buttons or through a PC using the free configuration software.

Software Compatibility:

• The free RAINBOW+ software enables parameter setting, data logging, and real-time monitoring.
